R quickstart

In this quick start guide, we will write our first script in R.

Local development

Develop from various environments such as your terminal, VS Code, and JetBrains IDEs.

Dependencies in R

How to manage dependencies in R scripts.

Scripts are the basic building blocks in Windmill. They can be run and scheduled as standalone, chained together to create Flows or displayed with a personalized User Interface as Apps.

Script editor

All the details on scripts.

Triggers

Trigger scripts and flows on-demand, by schedule or on external events.

Scripts consist of 2 parts:

• Code: for R scripts, they must have a main function defined as main <- function(...).
• Settings: settings & metadata about the Script such as its path, summary, description, jsonschema of its inputs (inferred from its signature).

When stored in a code repository, these 2 parts are stored separately at <path>.r and <path>.script.yaml

Windmill automatically manages dependencies for you. When you use packages in your R script through library() or require() calls, Windmill parses these dependencies upon saving the script and automatically resolves versions from CRAN, ensuring that the same version of the script is always executed with the same versions of its dependencies.

This is a simple example of a script built in R with Windmill:

library(httr)
library(jsonlite)

main <- function(url = "https://httpbin.org/get", message = "Hello from Windmill!") {
  response <- GET(url, query = list(message = message))

  list(
    status = status_code(response),
    body = content(response, as = "parsed"),
    message = "Request completed successfully"
  )
}

In this quick start guide, we'll create a script that greets the operator running it.

From the Home page, click +Script. This will take you to the first step of script creation: Metadata.

Settings

As part of the settings menu, each script has metadata associated with it, enabling it to be defined and configured in depth.

• Path is the Script's unique identifier that consists of the script's owner, and the script's name. The owner can be either a user, or a group (folder).
• Summary (optional) is a short, human-readable summary of the Script. It will be displayed as a title across Windmill. If omitted, the UI will use the path by default.

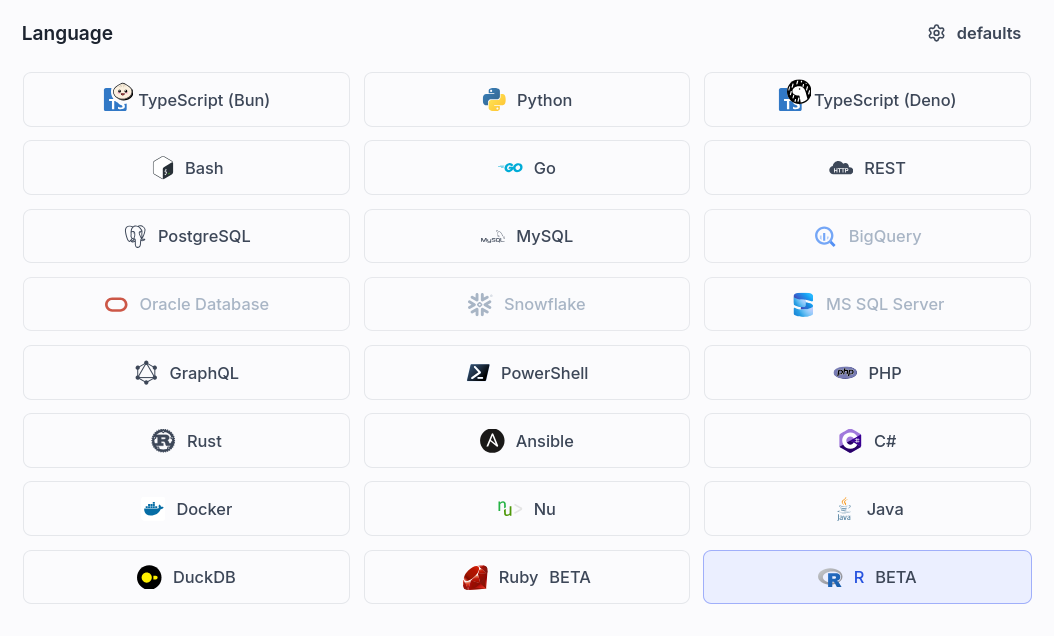

• Language of the script.
• Description is where you can give instructions through the auto-generated UI to users on how to run your Script. It supports markdown.
• Script kind: Action (by default), Trigger, Approval or Error handler. This acts as a tag to filter appropriate scripts from the flow editor.

This menu also has additional settings on Runtime, Generated UI and Triggers.

Settings

Each script has metadata & settings associated with it, enabling it to be defined and configured in depth.

Now click on the code editor on the left side, and let's build our Hello World!

Code

Windmill provides an online editor to work on your Scripts. The left-side is the editor itself. The right-side previews the UI that Windmill will generate from the Script's signature - this will be visible to the users of the Script. You can preview that UI, provide input values, and test your script there.

Code editor

The code editor is Windmill's integrated development environment.

Auto-generated UIs

Windmill creates auto-generated user interfaces for scripts and flows based on their parameters.

As we picked R for this example, Windmill provided some R boilerplate. Let's take a look:

library(crayon)
library(dplyr)
library(zoo)
library(jsonlite)

main <- function(
  x,
  name = "default",
  age = 25,
  data = list(1, 2, 3),
  flag = TRUE
) {
  # Use Windmill helpers:
  # var <- get_variable("f/my_var")
  # res <- get_resource("f/my_resource")

  df <- tibble(name = name, age = age, x = x)
  result <- df %>% mutate(greeting = paste("Hello", name))

  return(toJSON(result, auto_unbox = TRUE))
}

In Windmill, R scripts must have a main function defined as main <- function(...) that will be the script's entrypoint. There are a few important things to note about the main function:

• The main arguments are used for generating
  1. the input spec of the Script
  2. the frontend that you see when running the Script as a standalone app.
• Default values are used to infer argument types and generate the UI form. String defaults create string inputs, numeric defaults create number inputs, list/vector defaults create appropriate JSON inputs, etc.
• You can customize the UI in later steps (but not change the input type!).

JSON schema and parsing

JSON Schemas are used for defining the input specification for scripts and flows, and specifying resource types.

Back to our Hello World. We can clean up the boilerplate, change the main to take in the user's name. Let's also return the name, maybe we can use this later if we use this Script within a flow or app and need to pass its result on.

main <- function(name = "World") {
  print(paste("Hello", name, "! Greetings from R!"))
  name
}

Accessing variables and resources

R scripts can access Windmill variables and resources using built-in helper functions:

library(httr)
library(jsonlite)

main <- function() {
  # Get a variable
  secret <- get_variable("f/examples/secret")

  # Get a resource (returns a list/object)
  db_config <- get_resource("f/examples/postgres")

  # Access context variables from environment
  user <- Sys.getenv("WM_USERNAME")
  workspace <- Sys.getenv("WM_WORKSPACE")

  list(
    secret = secret,
    db_host = db_config$host,
    user = user,
    workspace = workspace
  )
}

Instant preview & testing

Look at the UI preview on the right: it was updated to match the input signature. Run a test (Ctrl + Enter) to verify everything works.

You can change how the UI behaves by changing the main signature. For example, if you remove the default for the name argument, the UI will consider this field as required.

main <- function(name)

Instant preview & testing

On top of its integrated editors, Windmill allows users to see and test what they are building directly from the editor, even before deployment.

Now let's go to the last step: the "Generated UI" settings.

Generated UI

From the Settings menu, the "Generated UI" tab lets you customize the script's arguments.

The UI is generated from the Script's main function signature, but you can add additional constraints here. For example, we could use the Customize property: add a regex by clicking on Pattern to make sure users are providing a name with only alphanumeric characters: ^[A-Za-z0-9]+$. Let's still allow numbers in case you are some tech billionaire's kid.

Script kind

You can attach additional functionalities to Scripts by specializing them into specific Script kinds.

Generated UI

main function's arguments can be given advanced settings that will affect the inputs' auto-generated UI and JSON Schema.

Run!

We're done! Now let's look at what users of the script will do. Click on the Deploy button to load the script. You'll see the user input form we defined earlier.

Note that Scripts are versioned in Windmill, and each script version is uniquely identified by a hash.

Fill in the input field, then hit "Run". You should see a run view, as well as your logs. All script runs are also available in the Runs menu on the left.

You can also choose to run the script from the CLI with the pre-made Command-line interface call.

Triggers

Trigger scripts and flows on-demand, by schedule or on external events.

Dependencies management

R dependencies are automatically detected from library() and require() calls in your script. Windmill resolves package versions from CRAN:

library(httr)
library(jsonlite)
library(dplyr)
library(ggplot2)

main <- function(data_url = "https://example.com/data.csv") {
  # Use httr for HTTP requests
  response <- GET(data_url)

  # Parse JSON responses
  data <- fromJSON(content(response, as = "text"))

  # Use dplyr for data manipulation
  result <- data %>%
    filter(!is.na(value)) %>%
    summarise(mean_value = mean(value))

  result
}

Windmill will automatically:

• Parse your library() and require() calls when you save the script
• Resolve versions from CRAN (with 3-day TTL caching for lockfiles)
• Install packages to a shared cache directory
• Cache dependencies for faster execution

Verbose mode

By default, renv output is suppressed during package installation. To enable verbose output for debugging, add a #verbose annotation at the top of your script:

#verbose

library(httr)
library(jsonlite)

main <- function() {
  # Your code here
}

Caching

Every R package dependency is cached on disk by default. Furthermore if you use the Distributed cache storage, it will be available to every other worker, allowing fast startup for every worker.

What's next?

This script is a minimal working example, but there's a few more steps that can be useful in a real-world use case:

• Pass variables and secrets to a script.
• Connect to resources.
• Trigger that script in many ways.
• Compose scripts in Flows, low-code apps or full-code apps.
• You can share your scripts with the community on Windmill Hub. Once submitted, they will be verified by moderators before becoming available to everyone right within Windmill.

Scripts are immutable and there is a hash for each deployment of a given script. Scripts are never overwritten and referring to a script by path is referring to the latest deployed hash at that path.

Versioning

Scripts, when deployed, can have a parent script identified by its hash.

For each script, a UI is autogenerated from the jsonschema inferred from the script signature, and can be customized further as standalone or embedded into rich UIs using the App builder.

Auto-generated UIs

Windmill creates auto-generated user interfaces for scripts and flows based on their parameters.

Generated UI

main function's arguments can be given advanced settings that will affect the inputs' auto-generated UI and JSON Schema.

In addition to the UI, sync and async webhooks are generated for each deployment.

Webhooks

Trigger scripts and flows from webhooks.
