Data Pipelines

An ETL is nothing else than a DAG of jobs, each of them reading datasets as input, running computation, and producing new datasets (or updating them).

Windmill enables building fast, powerful, reliable, and easy-to-build data pipelines:


The particularity of data pipeline flows vs. any other kind of automation flows is that they run computation on large datasets and the result of such computation is itself a (potentially large) dataset that needs to be stored.

For the compute, as data practitioner for the most demanding ETLs, we have observed that in almost all cases, the system they run on is ill-designed for their task. Much faster alternatives now exist leveraging the modern OLAP processing libraries. We have integrated with Polars and DuckDB, as ones of the best-in-class in-memory data processing libraries and they fit particularly well Windmill since you can assign variously sized workers depending on the step.

To give you a quick idea:

  • Running a SELECT COUNT(*), SUM(column_1), AVG(column_2) FROM my_table GROUP_BY key with 600M entries in my_table requires less than 24Gb of memory using DuckDB
  • Running a SELECT * FROM table_a JOIN table_b ORDER BY key, with table_a having 300M rows and table_b 75M rows with DuckDB requires 24Gb of memory

Add to those numbers that on AWS for example, you can get up to 24Tb of memory on a single server. Nowadays, you don't need a complex distributed computing architecture to process a large amount of data.

And for storage, you can now link a Windmill workspace to an S3 bucket and use it as source and/or target of your processing steps seamlessly, without any boilerplate.

The very large majority of ETLs can be processed step-wise on single nodes and Windmill provides (one of) the best models for orchestrating non-sharded compute. Using this model, your ETLs will see a massive performance improvement, your infrastructure will be easier to manage and your pipeline will be easier to write, maintain, and monitor.

Windmill integration with an external S3 storage

In Windmill, a data pipeline is implemented using a flow, and each step of the pipeline is a script. One of the key features of Windmill flows is to easily pass a step result to its dependent steps. But because those results are serialized to Windmill database and kept as long as the job is stored, this obviously won't work when the result is a dataset of millions of rows. The solution is to save the datasets to an external storage at the end of each script.

In most cases, S3 is a well-suited storage and Windmill now provides a basic yet very useful integration with external S3 storage.

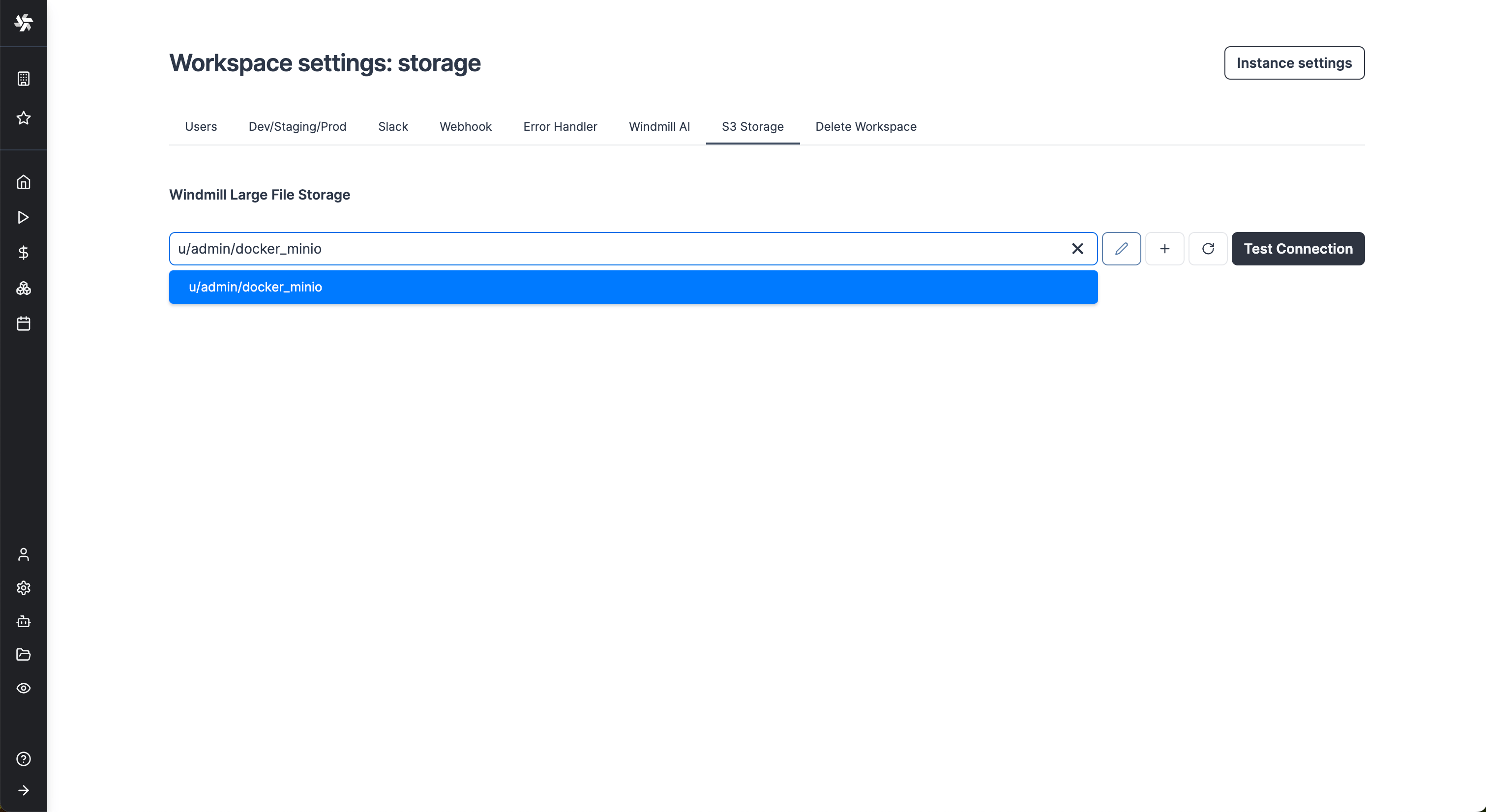

The first step is to define an S3 resource in Windmill and assign it to be the Workspace S3 bucket in the workspace settings.

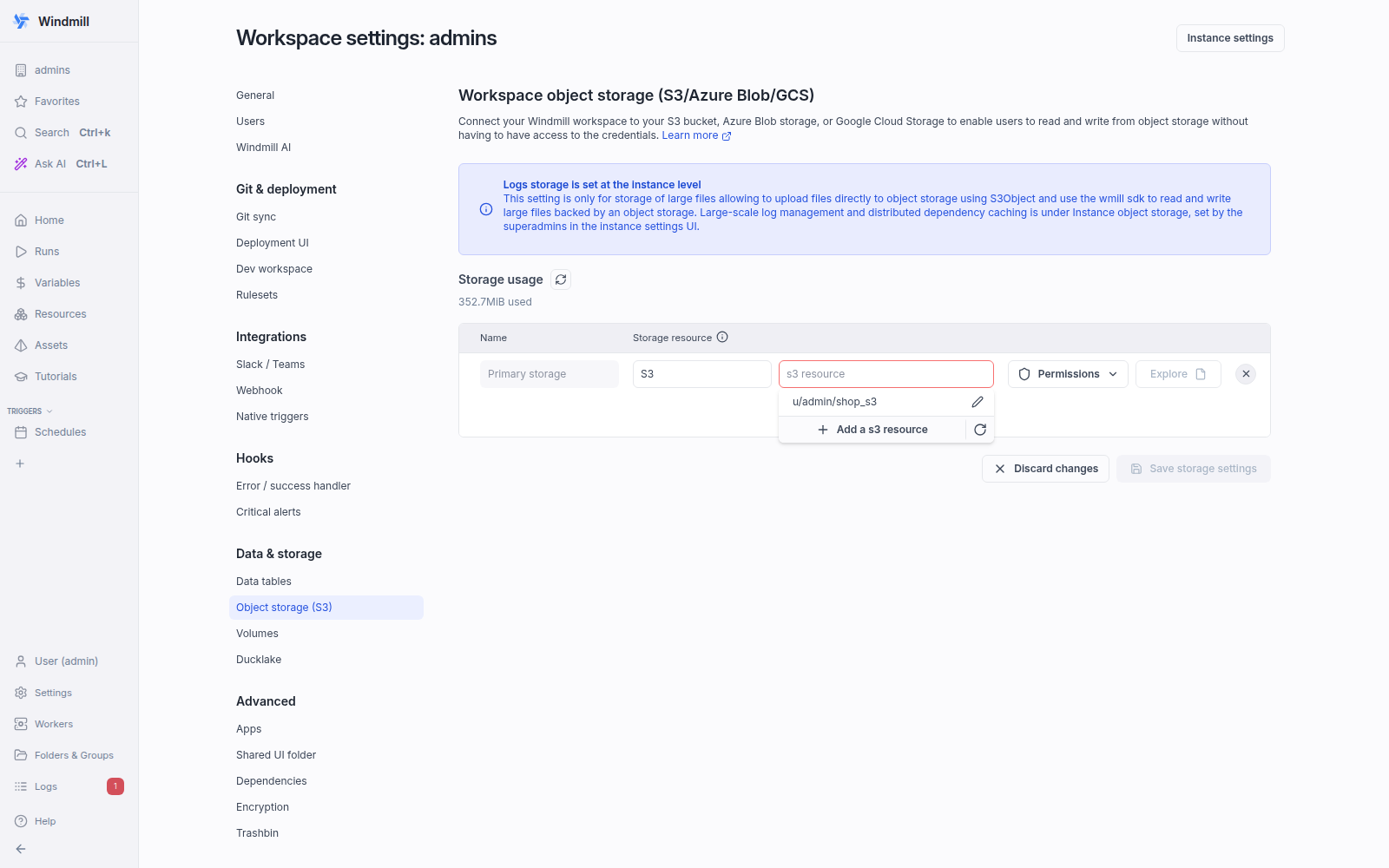

S3 workspace settings

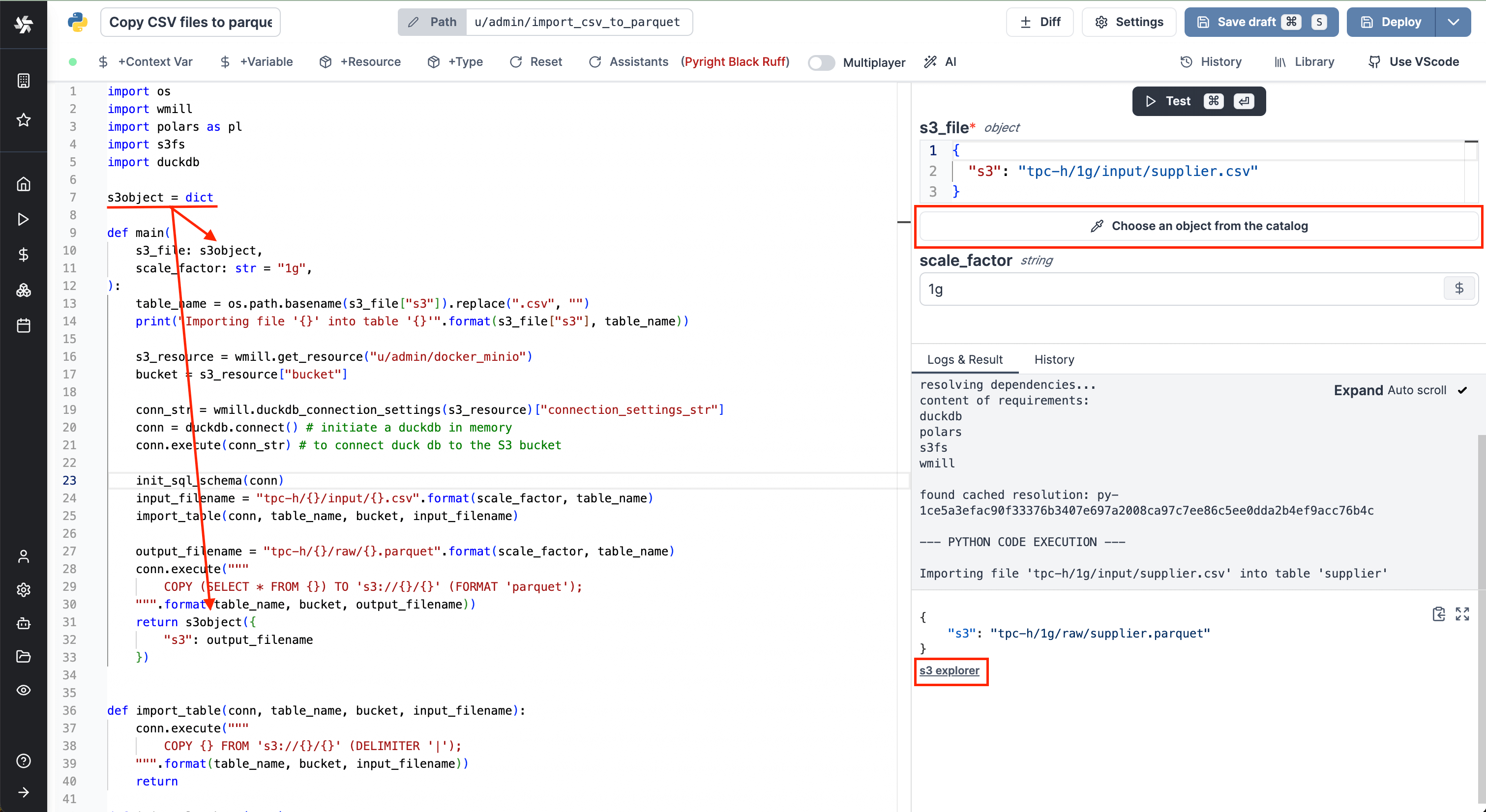

From now on, Windmill will be connected to this bucket and you'll have easy access to it from the code editor and the job run details. If a script takes as input a s3object, you will see in the input form on the right a button helping you choose the file directly from the bucket. Same for the result of the script. If you return an s3object containing a key s3 pointing to a file inside your bucket, in the result panel there will be a button to open the bucket explorer to visualize the file.

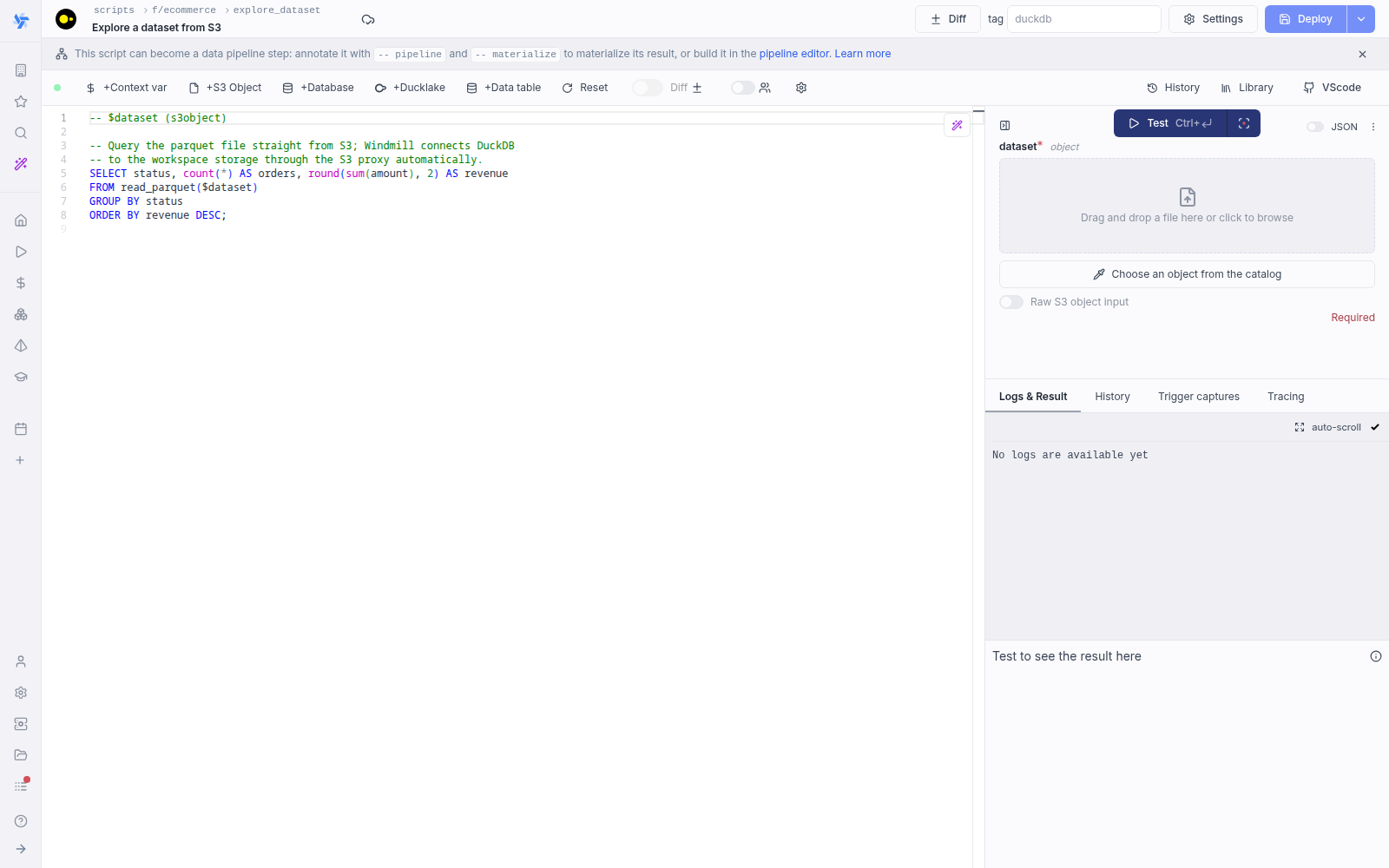

Windmill code editor

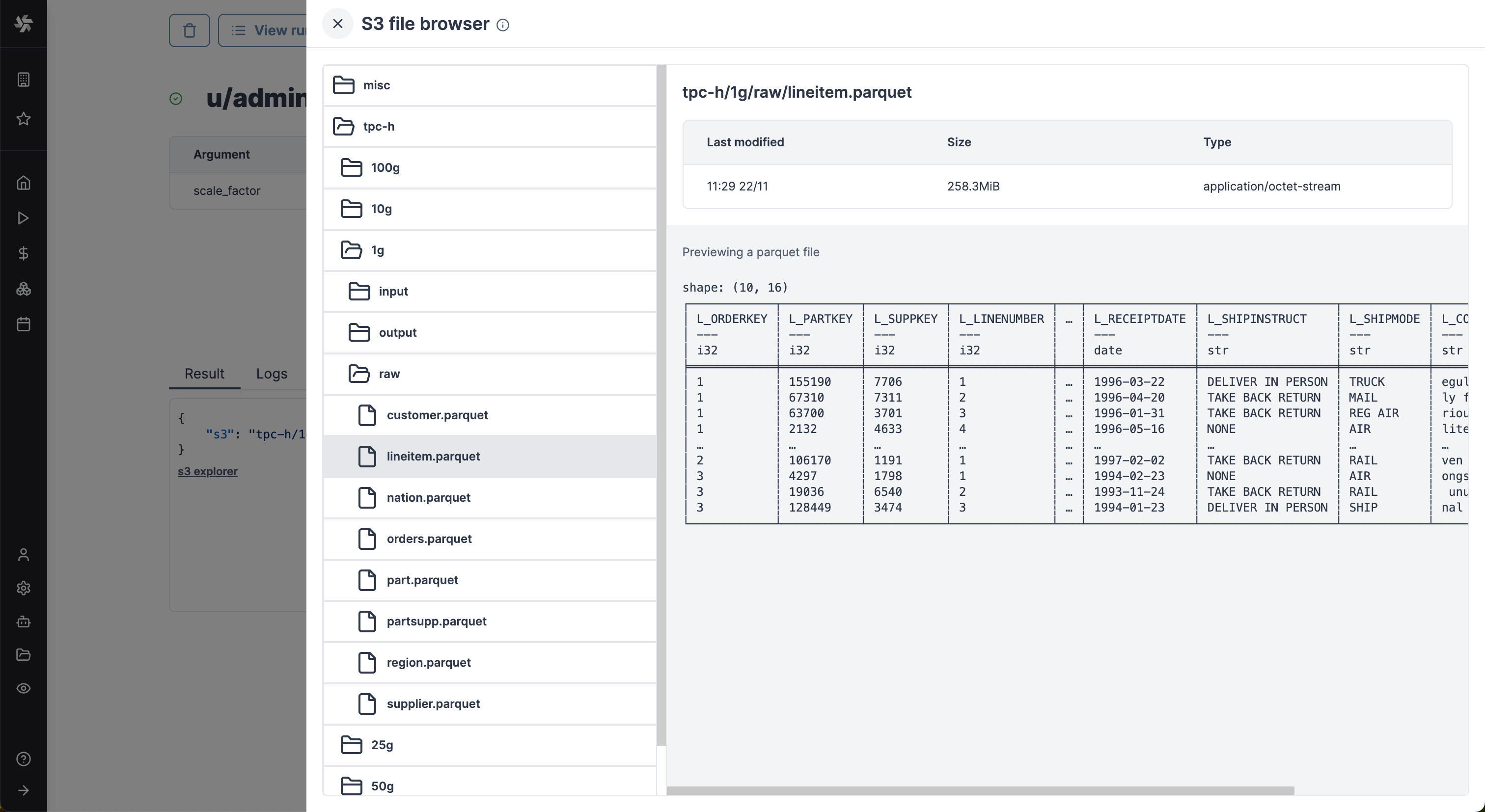

Clicking on the button will lead directly to a bucket explorer. You can browse the bucket content and even visualize file content without leaving Windmill.

S3 bucket explorer

Clicking on one of those buttons, a drawer will open displaying the content of the workspace bucket. You can select any file to get its metadata and if the format is common, you'll see a preview. In the above picture, for example, we're showing a Parquet file, which is very convenient to quickly validate the result of a script.

From there you always have the possibility to use the S3 client library of your choice to read and write to S3. That being said, Polars and DuckDB can read/write directly from/to files stored in S3 Windmill now ships with helpers to make the entire data processing mechanics very cohesive.

Read a file from S3 within a script

import * as wmill from 'windmill-client';
import { S3Object } from 'windmill-client';

export async function main(input_file: S3Object) {
// Load the entire file_content as a Uint8Array
const file_content = await wmill.loadS3File(input_file);

const decoder = new TextDecoder();
const file_content_str = decoder.decode(file_content);
console.log(file_content_str);

// Or load the file lazily as a Blob
let fileContentBlob = await wmill.loadS3FileStream(inputFile);
console.log(await fileContentBlob.text());
}

Read S3 file

Create a file in S3 within a script

import * as wmill from 'windmill-client';
import { S3Object } from 'windmill-client';

export async function main(s3_file_path: string) {
const s3_file_output: S3Object = {
s3: s3_file_path
};

const file_content = 'Hello Windmill!';
// file_content can be either a string or ReadableStream<Uint8Array>
await wmill.writeS3File(s3_file_output, file_content);
return s3_file_output;
}

Write to S3 file

info

Certain file types, typically parquet files, can be directly rendered by Windmill

Windmill embedded integration with Polars and DuckDB for data pipelines

ETLs can be easily implemented in Windmill using its integration with Polars and DuckDB for facilitate working with tabular data. In this case, you don't need to manually interact with the S3 bucket, Polars/DuckDB does it natively and in a efficient way. Reading and Writing datasets to S3 can be done seamlessly.

#requirements:
#polars==0.20.2
#s3fs==2023.12.0
#wmill>=1.229.0

import wmill
from wmill import S3Object
import polars as pl
import s3fs


def main(input_file: S3Object):
bucket = wmill.get_resource("<PATH_TO_S3_RESOURCE>")["bucket"]

# this will default to the workspace s3 resource
storage_options = wmill.polars_connection_settings().storage_options
# this will use the designated resource
# storage_options = wmill.polars_connection_settings("<PATH_TO_S3_RESOURCE>").storage_options

# input is a parquet file, we use read_parquet in lazy mode.
# Polars can read various file types, see
# https://pola-rs.github.io/polars/py-polars/html/reference/io.html
input_uri = "s3://{}/{}".format(bucket, input_file["s3"])
input_df = pl.read_parquet(input_uri, storage_options=storage_options).lazy()

# process the Polars dataframe. See Polars docs:
# for dataframe: https://pola-rs.github.io/polars/py-polars/html/reference/dataframe/index.html
# for lazy dataframe: https://pola-rs.github.io/polars/py-polars/html/reference/lazyframe/index.html
output_df = input_df.collect()
print(output_df)

# To write back the result to S3, Polars needs an s3fs connection
s3 = s3fs.S3FileSystem(**wmill.polars_connection_settings().s3fs_args)
output_file = "output/result.parquet"
output_uri = "s3://{}/{}".format(bucket, output_file)
with s3.open(output_uri, mode="wb") as output_s3:
# persist the output dataframe back to S3 and return it
output_df.write_parquet(output_s3)

return S3Object(s3=output_file)
info

Polars and DuckDB need to be configured to access S3 within the Windmill script. The job will need to accessed the S3 resources, which either needs to be accessible to the user running the job, or the S3 resource needs to be set as public in the workspace settings.

Canonical data pipeline in Windmill w/ Polars and DuckDB

With S3 as the external store, a transformation script in a flow will typically perform:

  1. Pulling data from S3.
  2. Running some computation on the data.
  3. Storing the result back to S3 for the next scripts to be run.

Windmill SDKs now expose helpers to simplify code and help you connect Polars or DuckDB to the Windmill workspace S3 bucket. In your usual IDE, you would need to write for each script:

conn = duckdb.connect()
conn.execute(
"""
SET home_directory='./';
INSTALL 'httpfs';
LOAD 'httpfs';
SET s3_url_style='path';
SET s3_region='us-east-1';
SET s3_endpoint='http://minio:9000'; # using MinIo in Docker works perfectly fine if you don't have access to an AWS S3 bucket!
SET s3_use_ssl=0;
SET s3_access_key_id='<ACCESS_KEY>';
SET s3_secret_access_key='<SECRET_KEY>';
"""
)
# then you can start using your connection to pull CSVs/Parquet/JSON/... files from S3
conn.sql("SELECT * FROM read_parquet(s3://windmill_bucket/file.parquet)")

In Windmill, you can just do:

conn = duckdb.connect()
s3_resource = wmill.get_resource("/path/to/resource")
conn.execute(wmill.duckdb_connection_settings(s3_resource)["connection_settings_str"])

conn.sql("SELECT * FROM read_parquet(s3://windmill_bucket/file.parquet)")

And similarly for Polars:

args = {
"anon": False,
"endpoint_url": "http://minio:9000",
"key": "<ACCESS_KEY>",
"secret": "<SECRET_KEY>",
"use_ssl": False,
"cache_regions": False,
"client_kwargs": {
"region_name": "us-east-1",
},
}
s3 = s3fs.S3FileSystem(**args)
with s3.open("s3://windmill_bucket/file.parquet", mode="rb") as f:
dataframe = pl.read_parquet(f)

becomes in Windmill:

s3_resource = wmill.get_resource("/path/to/resource")
s3 = s3fs.S3FileSystem(**wmill.polars_connection_settings(s3_resource))
with s3.open("s3://windmill_bucket/file.parquet", mode="rb") as f:
dataframe = pl.read_parquet(f)

And more to come! With both Windmill providing the boilerplate code, and Polars and DuckDB handling reading and writing from/to S3 natively, you can interact with S3 files very naturally and your Windmill scripts become concise and focused on what really matters: processing the data.

In the end, a canonical pipeline step in Windmill will look something like this:

import polars as pl
import s3fs
import datetime
import wmill

s3object = dict
def main(input_dataset: s3object):
# initialization: connect Polars to the workspace bucket
s3_resource = wmill.get_resource("/path/to/resource")
s3 = s3fs.S3FileSystem(wmill.duckdb_connection_settings(s3_resource))

# reading data from s3:
bucket = s3_resource["bucket"]
input_dataset_uri = "s3://{}/{}".format(bucket, input_dataset["s3"])
output_dataset_uri = "s3://{}/output.parquet".format(bucket)
with s3.open(input_dataset_uri, mode="rb") as input_dataset, s3.open(output_dataset_uri, mode="rb") as output_dataset:
input = pl.read_parquet(input_dataset)

# transforming the data
output = (
input.filter(pl.col("L_SHIPDATE") >= datetime.datetime(1994, 1, 1))
.filter(
pl.col("L_SHIPDATE")
< datetime.datetime(1994, 1, 1) + datetime.timedelta(days=365)
)
.filter((pl.col("L_DISCOUNT").is_between(0.06 - 0.01, 0.06 + 0.01)))
.filter(pl.col("L_QUANTITY") < 24)
.select([(pl.col("L_EXTENDEDPRICE") * pl.col("L_DISCOUNT")).alias("REVENUE")])
.sum()
.collect()
)

# writing the output back to S3
output.write_parquet(output_dataset)

# returning the URI of the output for next steps to process it
return s3object({
"s3": output_dataset_uri
})

The example uses Polars. If you're more into SQL you can use DuckDB, but the code will have the same structure: initialization, reading from S3, transforming, writing back to S3.

In-memory data processing performance

By using Polars, DuckDB, or any other data processing libraries inside Windmill, the computation will happen on a single node. Even though you might have multiple Windmill workers, a script will still be run by a single worker and the computation won't be distributed. We've run some benchmarks to expose the performance and scale you could expect for such a setup.

We've taken a well-known benchmark dataset: the TCP-H dataset. It has the advantage of being available in any size and being fairly representative of real use cases. We've generated multiple versions: 1Gb, 5Gb, 10Gb and 25Gb (if you prefer thinking in terms of rows, the biggest table of the 25Gb version has around 150M rows). We won't detail here the structure of the database or the queries we've run, but TPC-H is well-documented if needed.

The following procedure was followed:

  • Datasets provided by TPC-H as CSVs were uploaded as parquet files on S3.
  • TPC-H provides a set of canonical queries. They perform numerous joins, aggregations, group-bys, etc. 8 of them were converted in the different dialects.
  • Those queries were run sequentially as scripts in for-loop flow in Windmill, and this for each of the benchmark sets of data (1Gb, 5Gb, 10Gb, etc.). The memory of the Windmill server was recorded.
  • Each script was:
    • Reading the data straight from the S3 parquet files
    • Running the query
    • Storing the result in a separate parquet file on S3

A couple of notes before the results:

  • We've run those benchmarks on a m4.xlarge AWS server (8 vCPUs, 32Gb of memory). It's not a small server, but also not terribly large. Keep in mind you can get up to 24Tb of Memory on a single server on AWS (yes, it's not cheap, but it's possible!)
  • Polars comes with a lazy mode, in which it is supposed to be more memory efficient. We've benchmarked both normal and lazy mode.
  • We also ran those benchmarks on Spark, as a well-known and broadly used reference. To be as fair as possible, the Spark "cluster" was composed of a single node running also on an m4.xlarge AWS instance.

Polars is the fastest at computing the results, but consumes slightly more memory than Spark (it OOMed for the 25G benchmark). Polars in lazy mode, however, is a lot more memory efficient and can process more data, at the expense of computation time. Overall, both Polars and DuckDB behave very well in terms of memory consumption and computation time. The 10G benchmark contains tables with up to 60 million rows, and we were far from using the most powerful AWS instance. So, it is true that this doesn't scale horizontally, but it also confirms that a majority of data pipelines can be addressed with a large enough instance. And when you think about it, what's more convenient? Managing a single beefy server or a fleet of small servers?

info

DuckDB offers the possibility to back its database with a file on disk to save some memory. This mode fits perfectly with Windmill flows using a shared directory between steps. We implemented a simple flow where the first step loads the DB in a file, and the following steps consume this file to run the queries. We were able to run the 8 queries on the 100Gb benchmark successfully. It took 40 minutes and consumed 29,1Gb at the peak.

Learn more

For more details on storage in Windmill, see:
