Canonical deployment setups

This page describes three recommended deployment setups for Windmill, ordered from simplest to most advanced. These are opinionated models that provide a clear path for teams to deploy changes safely. You can follow these setups exactly or adapt them to your needs.

All setups are designed for teams that want to:

• Protect production from accidental changes
• Have a clear review process for deployments
• Enable developers to work independently without affecting production

Enterprise Edition

These setups rely on features such as Git Sync, Workspace Forks, and Protection Rulesets, which are Cloud plans or Enterprise Self-Hosted features. These canonical setups might be limited for users on Community Edition.

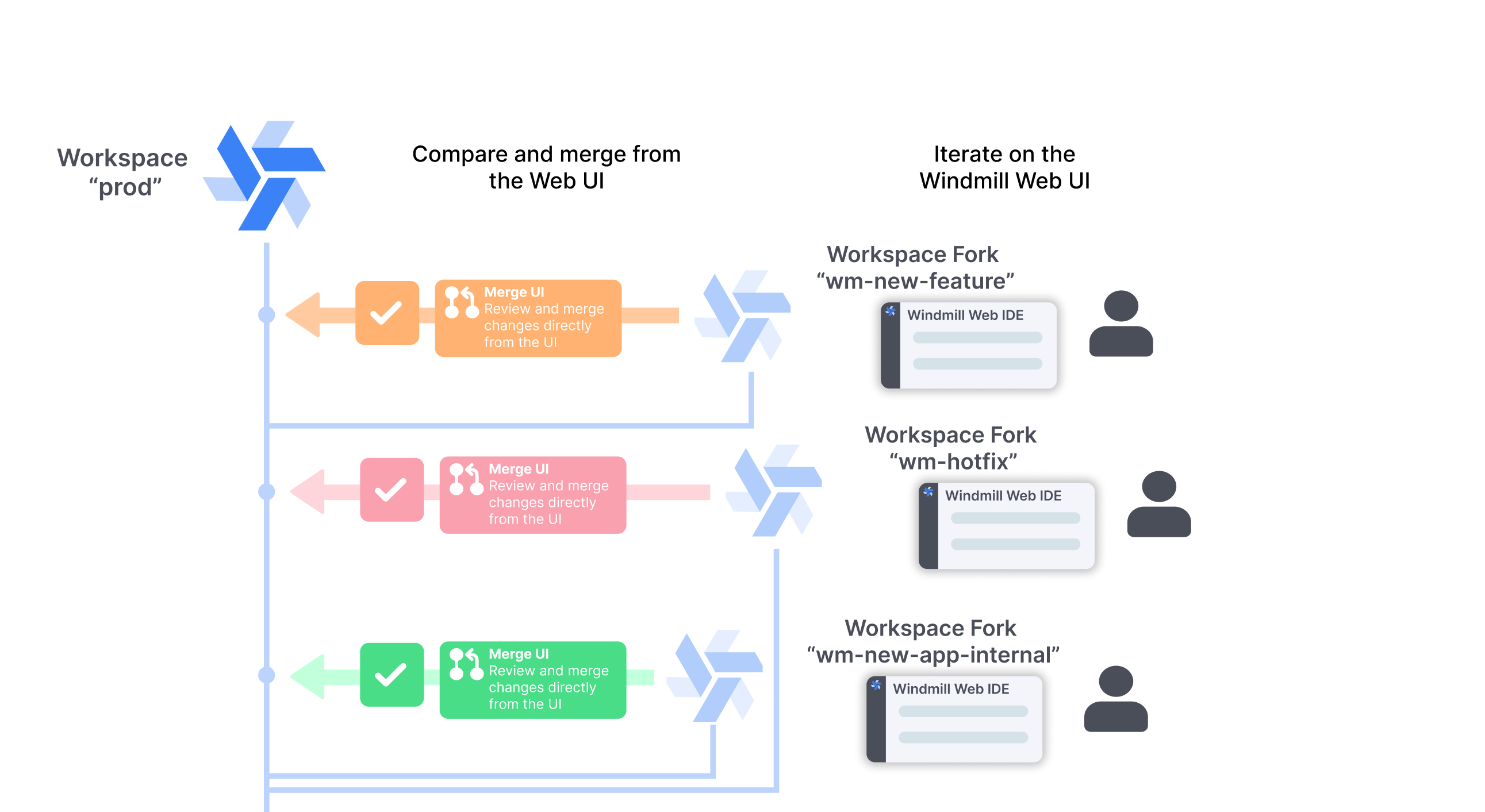

Setup 1: UI only (simplest)

This setup keeps everything within the Windmill UI, without requiring Git. It uses a single production workspace with protection rules, and developers create forks to make changes.

Architecture

• One production workspace (prod)
• Protection rulesets enabled to block direct edits
• A wm_deployer group with bypass permissions
• Developers create workspace forks to develop features
• Changes are merged back using the merge UI

Step-by-step setup

1. Create the production workspace

Create a workspace that will serve as your production environment. Name it something clear like prod or production.

2. Create the wm_deployer group

1. Navigate to the workspace settings
2. Go to the Groups section
3. Create a new group called wm_deployer
4. Add users who should have deployment permissions to this group

3. Enable protection rulesets

1. Navigate to Workspace Settings > Protection Rulesets
2. Click Add Rule
3. Enable Disable Direct Deployment
4. In the bypass permissions, add the wm_deployer group
5. Save the rule

This configuration prevents all users from directly deploying changes, except those in the wm_deployer group.

Developer workflow

1. A developer wants to make changes to a script, flow, or app
2. From the prod workspace, they create a workspace fork via the workspace menu
3. They make and test their changes in the forked workspace
4. When ready, they navigate to the fork's home page where a banner shows the diff with the parent workspace
5. They click Review & Deploy Changes to open the merge UI
6. A member of the wm_deployer group reviews and approves the merge

Deployer workflow

Members of the wm_deployer group can:

1. Review incoming changes from forks using the merge UI
2. Check the diff to understand what changed
3. Handle any conflicts (items that changed in both fork and parent)
4. Deploy the changes to the production workspace
5. Optionally, bypass protection rules to make direct emergency fixes (the bypass checkbox becomes available to them)

Advantages

• No Git required
• Simple setup with minimal configuration
• Visual diff review in the UI
• Developers can work independently in forks
• Clear separation between development and production

Considerations

• No external audit trail outside of Windmill
• Deployment history is tracked within Windmill only
• Less flexibility compared to Git-based workflows

Workspace forks

Create workspace forks for parallel development workflows

Protection Rulesets

Enforce governance policies that control how changes can be made

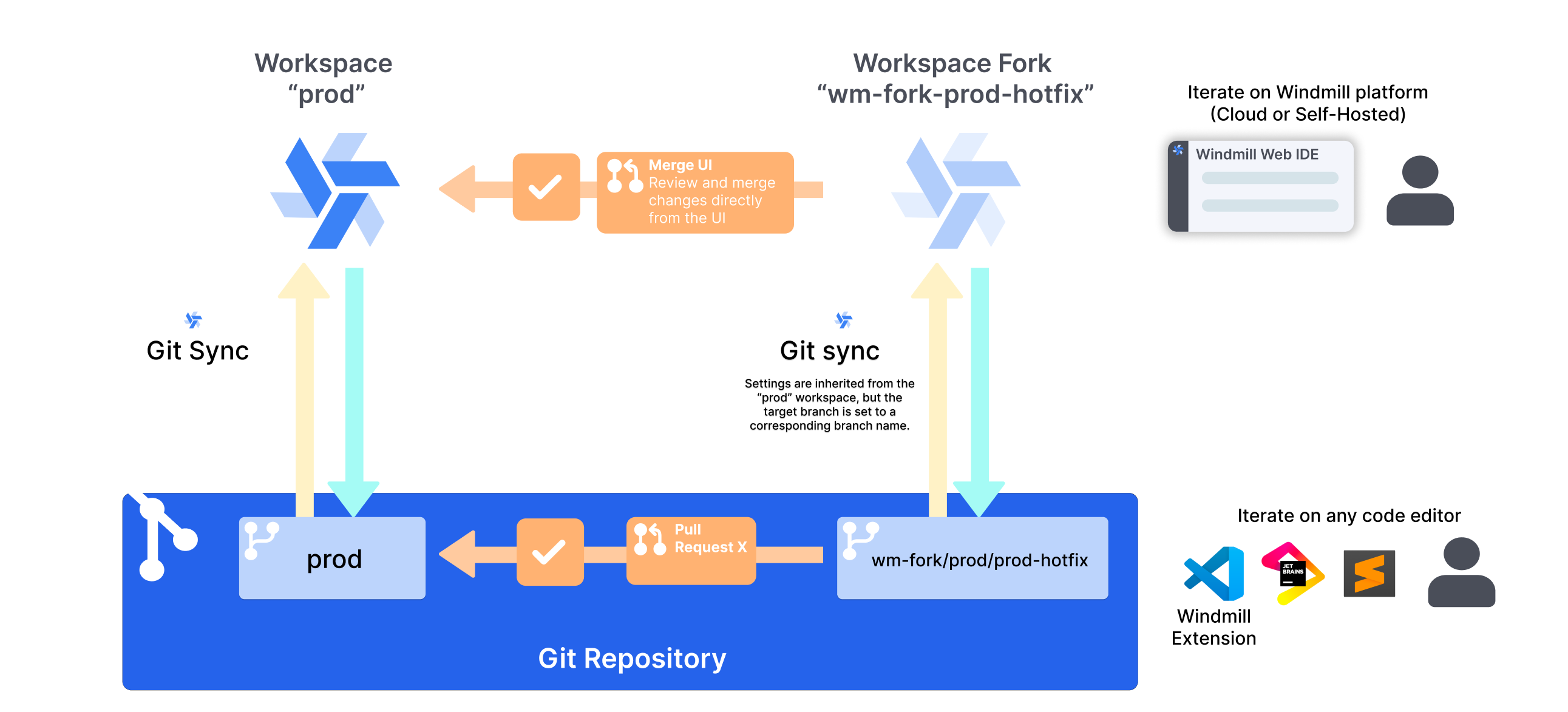

Setup 2: Git sync, 1 workspace + forks

This setup adds Git Sync to the UI-only workflow. It uses a single production workspace with forks for development, but syncs all changes to a Git repository for version control and audit trails.

Architecture

• One production workspace (prod)
• Git Sync enabled to sync workspace to a Git repository
• Protection rulesets enabled to block direct edits
• A wm_deployer group with bypass permissions
• Developers create workspace forks to develop features
• Changes are merged back using the merge UI

Step-by-step setup

1. Create the production workspace

Create a workspace that will serve as your production environment. Name it something clear like prod or production.

2. Create the Git repository

Create a Git repository (GitHub, GitLab, etc.) with a main branch that will store your workspace content.

3. Set up Git sync

Configure Git Sync for the production workspace:

1. Navigate to Workspace Settings > Git Sync
2. Click + Add connection
3. Create a git_repository resource pointing to your repository and the main branch
4. Save the configuration

4. Set up CI/CD actions

Add the required GitHub Actions (or equivalent for other platforms) to enable bi-directional sync. See the Git Sync CI/CD setup for the required workflow files:

• push-on-merge.yaml - Syncs merged changes back to the workspace

5. Create the wm_deployer group

1. Navigate to the workspace settings
2. Go to the Groups section
3. Create a new group called wm_deployer
4. Add users who should have deployment permissions to this group

6. Enable protection rulesets

1. Navigate to Workspace Settings > Protection Rulesets
2. Click Add Rule
3. Enable Disable Direct Deployment
4. In the bypass permissions, add the wm_deployer group
5. Save the rule

Developer workflow

1. A developer creates a workspace fork from the prod workspace
2. They make and test their changes in the forked workspace
3. When ready, they navigate to the fork's home page and click Review & Deploy Changes
4. A member of the wm_deployer group reviews and approves the merge
5. Changes are deployed to prod and automatically synced to Git

Advantages

• Full Git history and audit trail
• Simple single-workspace setup
• Visual diff review in the Windmill UI
• Developers work independently in forks
• Git provides backup and version control

Considerations

• Code review happens in Windmill UI, not Git PRs
• Single environment (no staging)
• Requires Git infrastructure and CI/CD setup

Git sync

Connect a Windmill workspace to a Git repository for automatic synchronization

Workspace forks

Create workspace forks for parallel development workflows

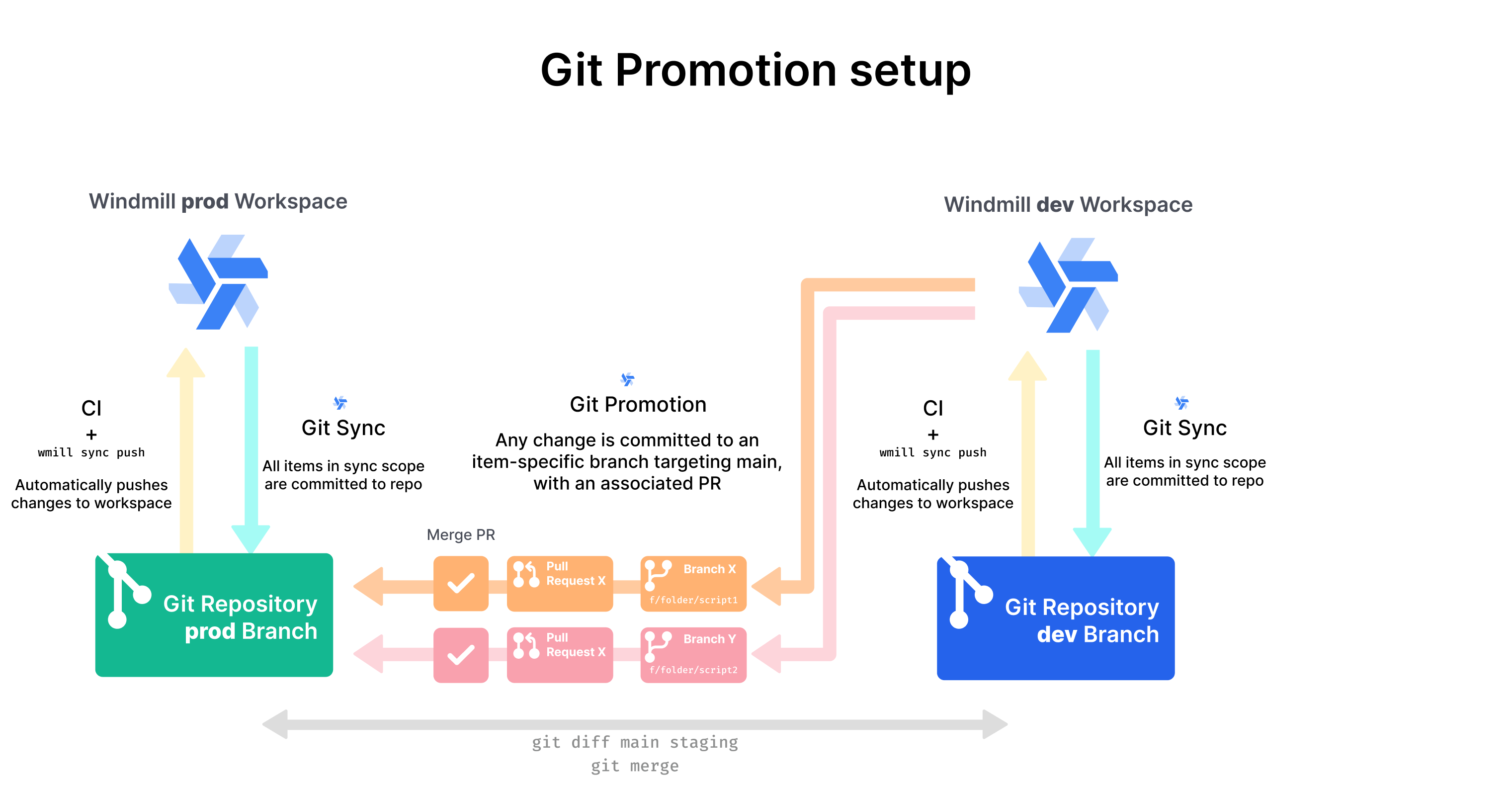

Setup 3: Git sync, 2 workspaces + promotion (most advanced)

This setup uses Git as the source of truth with two workspaces: dev and prod. Developers use forks on the dev workspace, and changes flow to prod via Git Promotion and pull requests.

Architecture

• Two workspaces: dev and prod
• Each workspace synced to a corresponding Git branch via Git Sync
• Git Promotion configured: dev promotes to prod branch
• Developers create workspace forks on the dev workspace
• CI/CD actions sync merged changes back to workspaces

Workspace	Git Branch	Promotes To
dev	dev	prod
prod	prod	-

Step-by-step setup

1. Create the Git repository

Create a Git repository (GitHub, GitLab, etc.) with two branches:

• main or prod (production)
• dev

2. Create the workspaces

Create two workspaces in Windmill:

• prod - Production environment
• dev - Development environment

3. Set up Git sync for each workspace

For each workspace, configure Git Sync:

1. Navigate to Workspace Settings > Git Sync
2. Click + Add connection
3. Create a git_repository resource pointing to your repository and the corresponding branch:
   • For prod workspace: create a resource targeting the prod branch
   • For dev workspace: create a resource targeting the dev branch
4. Save the configuration

4. Set up CI/CD actions

Add the required GitHub Actions (or equivalent for other platforms) to enable bi-directional sync. See the Git Sync CI/CD setup for the required workflow files:

• push-on-merge.yaml - Syncs merged changes back to the workspace
• open-pr-on-promotion-commit.yaml - Creates PRs for promotion branches

5. Configure Git Promotion

Set up promotion targets so changes can flow from dev to prod. The promotion target requires creating a new git_repository resource that points to the target branch.

For the dev workspace:

1. Navigate to Workspace Settings > Git Sync
2. Under the Git sync connection, click Add promotion target
3. Create a new git_repository resource that targets the prod branch (this is separate from the resource used for Git Sync)
4. Save the promotion target configuration

Separate resources required

The promotion target requires its own git_repository resource, distinct from the one used for Git Sync. This is because Git Sync syncs to the workspace's own branch, while Git Promotion pushes to a different branch (the target environment's branch).

6. Optional: Add protection rulesets

For additional safety, enable protection rulesets on the prod workspace to prevent accidental direct changes:

1. Navigate to Workspace Settings > Protection Rulesets
2. Enable Disable Direct Deployment
3. Add bypass permissions for a wm_deployer group if needed

Developer workflow

1. A developer creates a workspace fork from the dev workspace
2. They make and test their changes in the forked workspace
3. When ready, they merge changes back to the dev workspace using the merge UI
4. Changes are synced to the dev Git branch
5. To deploy to production, they use Git Promotion from the dev workspace
6. A branch wm_deploy/dev/path/to/item is created off the prod branch
7. A PR is automatically created via CI/CD
8. The team reviews and merges the PR
9. CI/CD syncs the change to the prod workspace

Advantages

• Full Git history and audit trail
• PR-based code review with your existing tools
• Separate dev and prod environments
• Works across Windmill instances
• Environment-specific configurations via environment-specific items
• Developers can work independently in forks
• Maximum flexibility for development workflows

Considerations

• Requires Git infrastructure and CI/CD setup
• More initial configuration than simpler setups
• Team needs familiarity with Git workflows

Git sync

Connect a Windmill workspace to a Git repository for automatic synchronization

Git Promotion workflow

Deploy across workspaces using Git branches and pull requests

Choosing between setups

Consideration	Setup 1: UI only	Setup 2: Git sync, 1 workspace	Setup 3: Git sync, 2 workspaces
Complexity	Low	Medium	High
Git required	No	Yes	Yes
Environments	1 (prod + forks)	1 (prod + forks)	2 (dev + prod)
Code review	In Windmill UI	In Windmill UI	In Git (PRs)
Audit trail	Windmill only	Git + Windmill	Git + Windmill
Multi-instance	No	No	Yes

Choose Setup 1: UI only if:

• Your team prefers a simpler setup without Git
• You don't need an external audit trail
• You want to get started quickly with minimal configuration

Choose Setup 2: Git sync, 1 workspace if:

• You want Git version control and audit trails
• You prefer code review in the Windmill UI
• A single environment is sufficient

Choose Setup 3: Git sync, 2 workspaces if:

• You want maximum flexibility in your development workflow
• Your team is already using Git for code review
• You need separate dev and prod environments
• You require PR-based code review for compliance
• You're deploying across multiple Windmill instances
