Apps Quickstart

Welcome to the Apps Quickstart! This document will provide you with 95% of the knowledge on building apps, in a few minutes.

Although Windmill provides auto-generated UIs to scripts and flows, you can build your own internal applications designed to your needs.

Windmill applications are customized UIs to interact with datasources (web, internal, data providers, etc). They are a great way to have non-technical users interact with custom-made workflows.

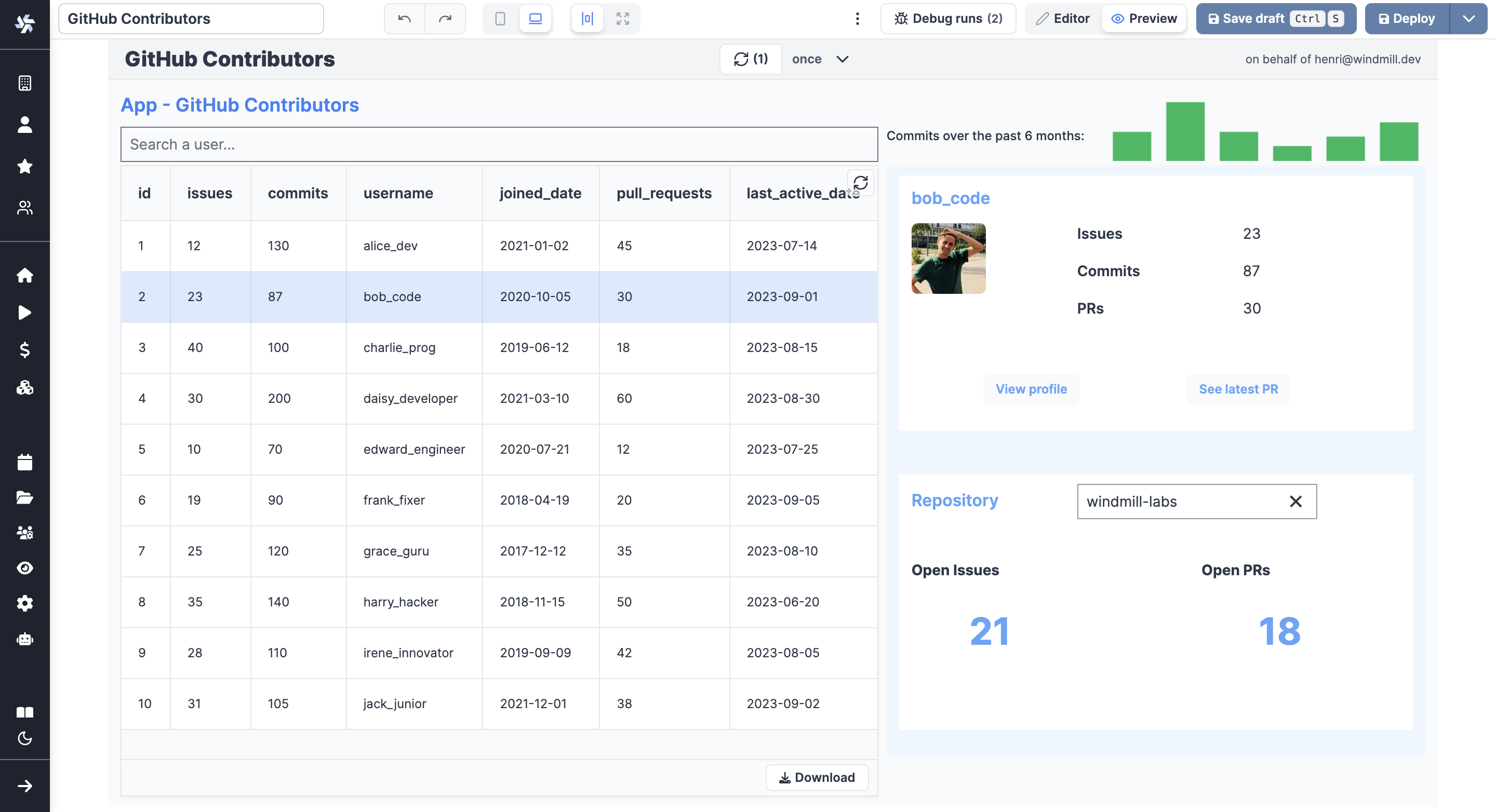

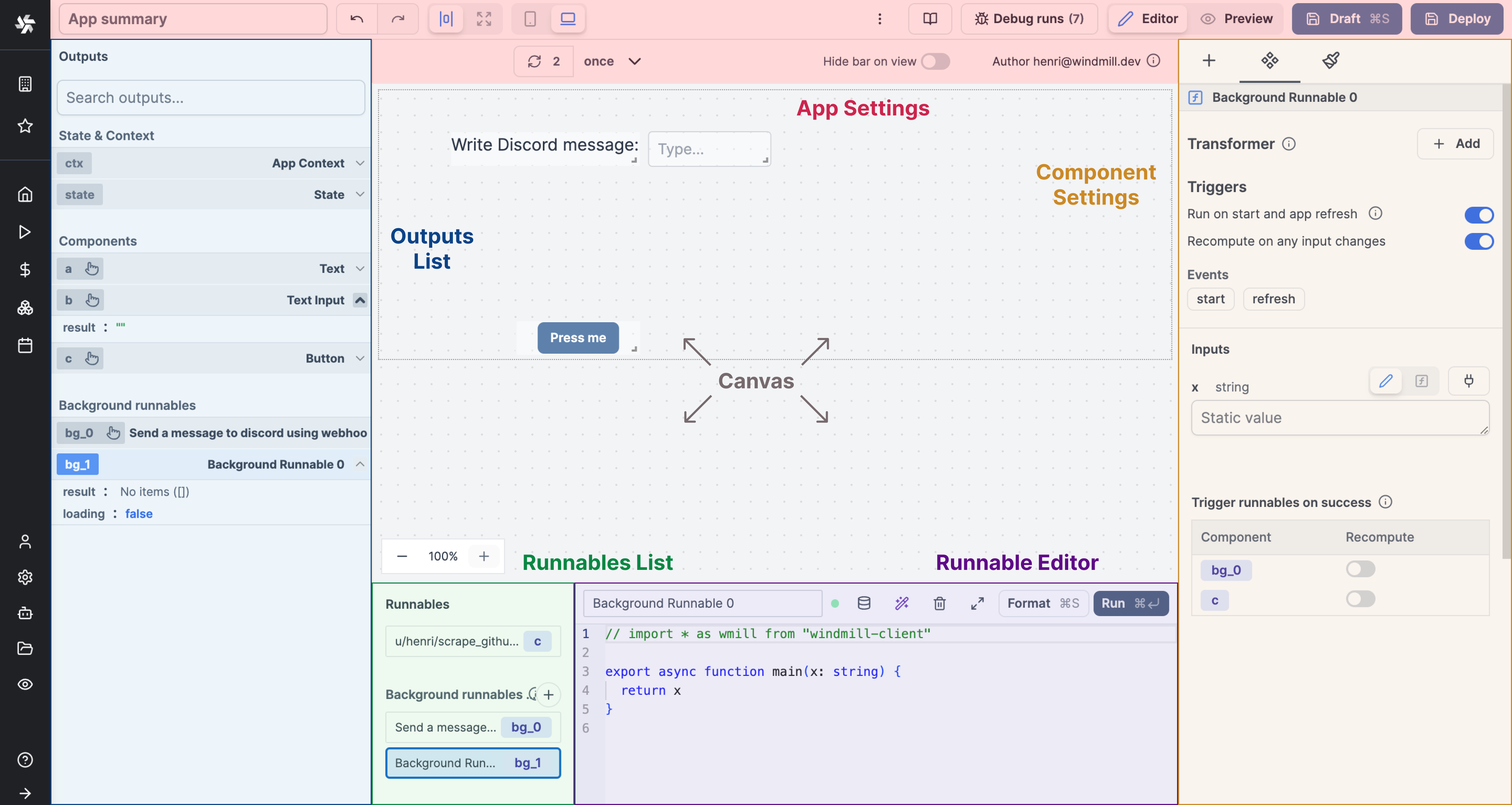

Here is an example of an app built with Windmill.

In short, what you need to remember about apps:

  • they work on a what-you-see-is-what-you-get basis
  • you can connect apps and components to datasources
  • components can be empowered by Windmill scripts

To create your first app, you could pick one from our Hub and fork it. Here, we're going to build our own app from scratch, step by step.

From Windmill, click on + App, and let's get started!

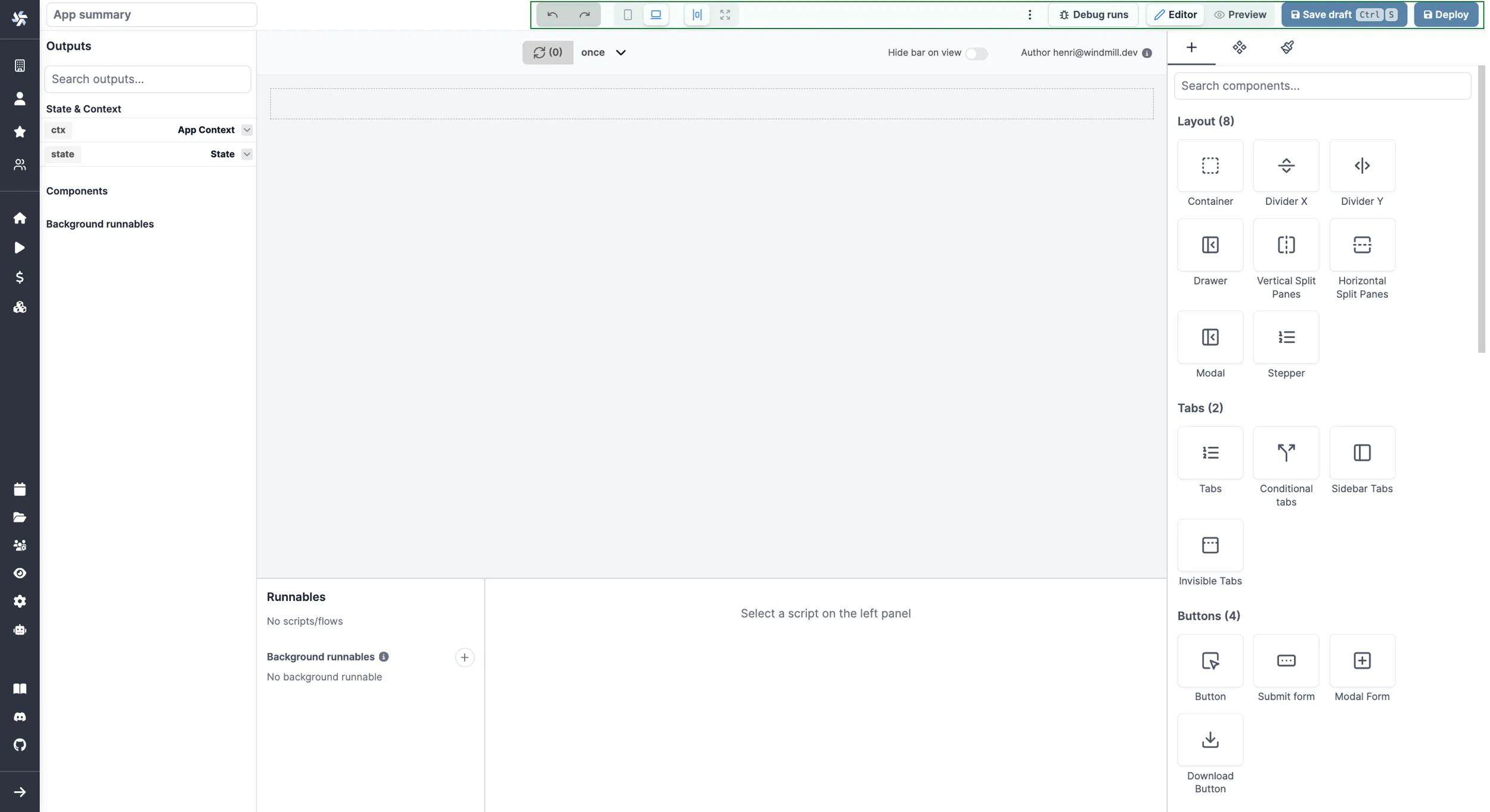

Toolbar

Before jumping in, you should decide if you want to build a Desktop or a Mobile app. Just clik on the appropriated icon on top.

While we are there, know that you can either go with centered content or rather display full page width.

Switch from Editor to Preview mode to take a step back on what you're building.

Toolbar

Components

The App editor works on a drag-and-drop basis. From the right-side menu, click on a component to create it on the canvas, move it maintaining a click on it and delete it clicking on Delete component at the bottom of the Settings tab. You can resize your components by dragging the resize handler on the bottom-right corner.

If you have numerous components you might need to Anchor some of them to have them unmovable by other components.


Check out all of our components at this page or (better) directly from the app editor. Know that we can quickly add components to the librairy, just mention your suggestions on our Discord channel.

Empower components with scripts

The beauty of Windmill App editor is the integrations of scripts & workflows to components. On the bottom of the app editor, you can find the Runnable editor. It allows you to create, edit or manage the scripts or flows linked to components (Runnables), and background scripts.

Runnable editor

Add a script to a component

The following video showcases how to call a script either from workspace/hub or add it directly inline.

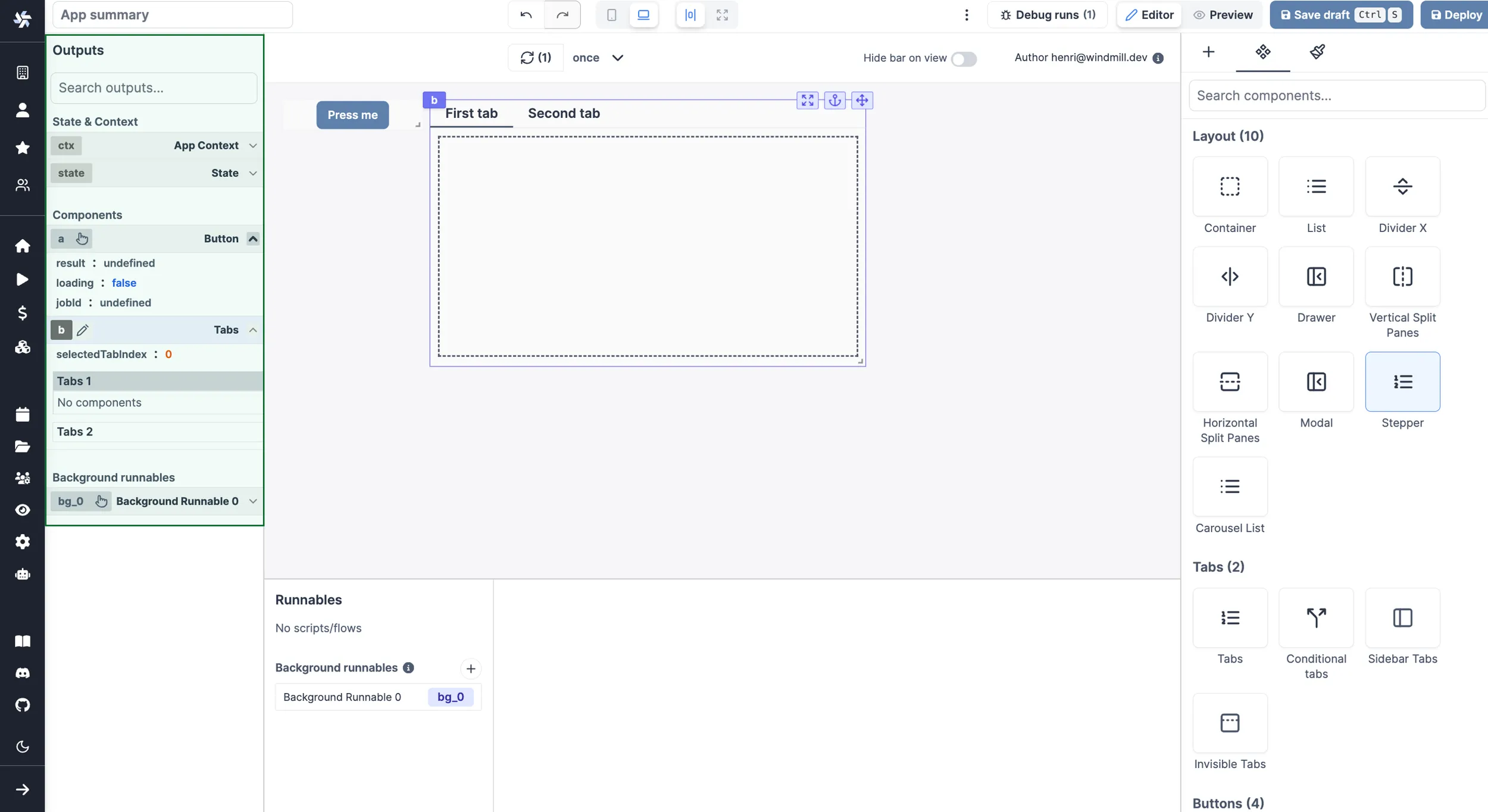

The Ouputs of each component can be found on the left side menu. Each of them is associated with a component (see the component id).

Apps outputs

Inputs can be connected to any output: on a component click on Connect and associate inputs to outputs.

Connect inputs to outputs

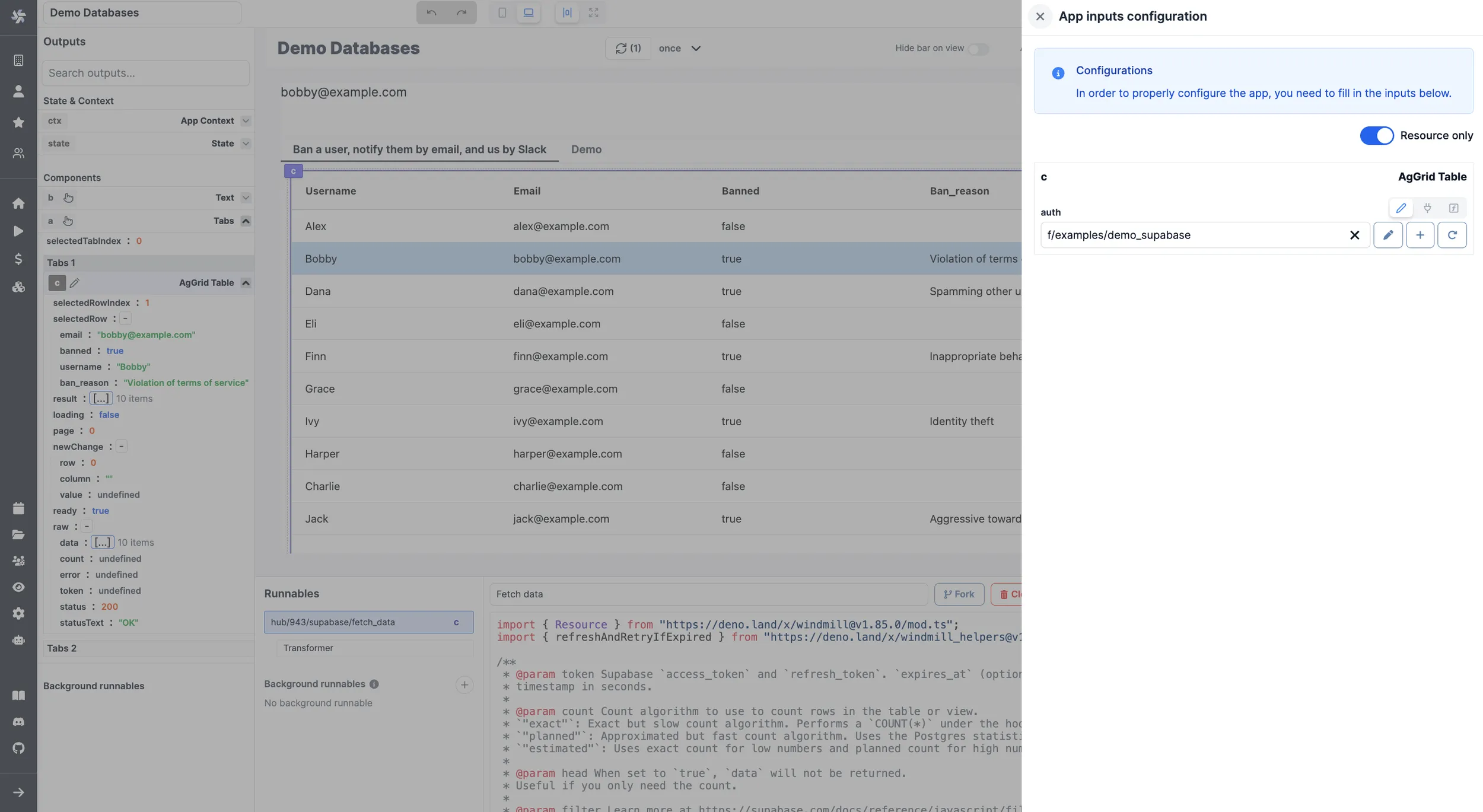

At any time, have a look at your app's Inputs associated with each component on the dedicated App inputs tab.

Apps inputs

Tailor the look of your app

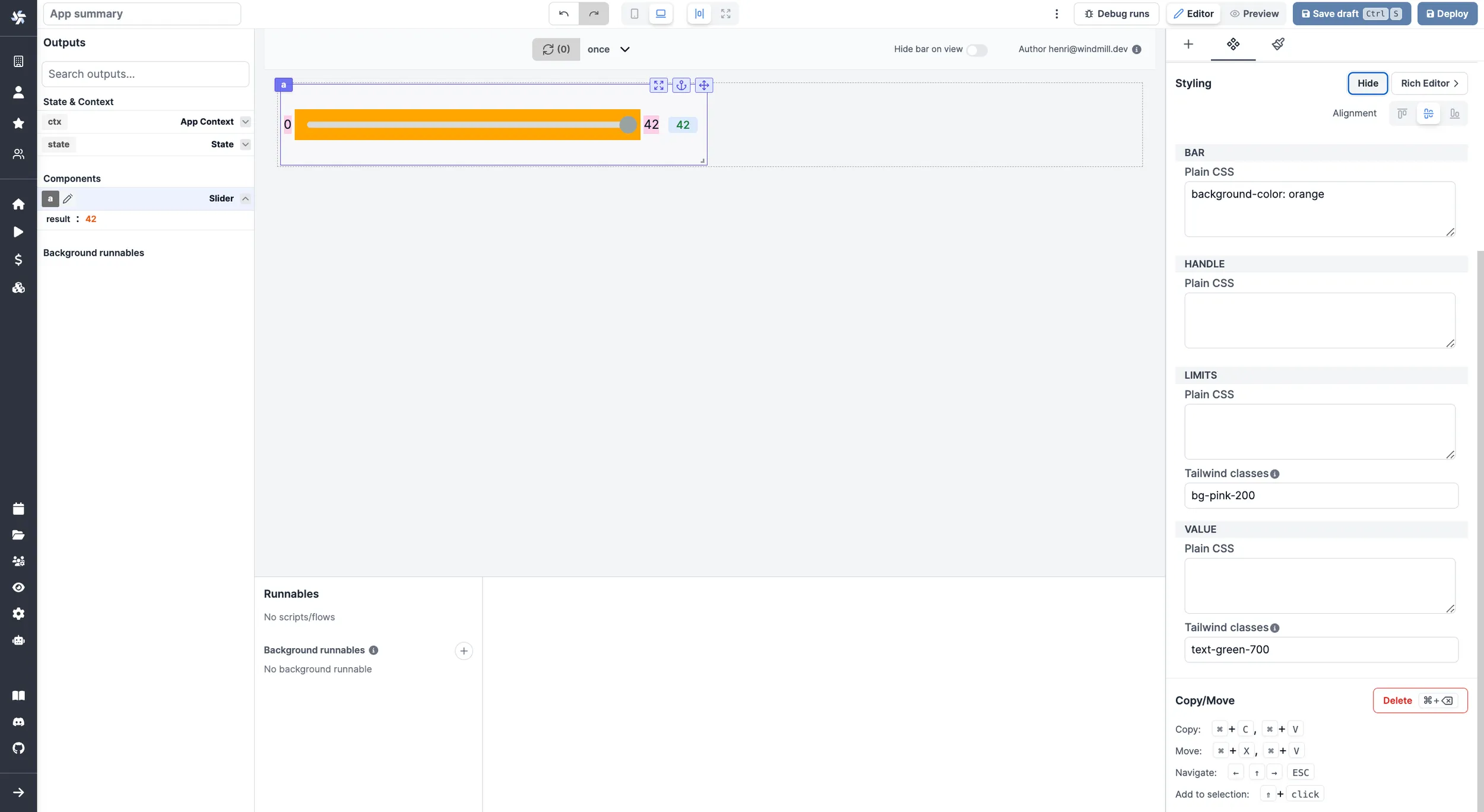

At the component level, on the Settings tab, configure the style of each component (color, size, label, etc.) either directly on boxes or in Custom CSS (on the Settings tab).

Cutomize components

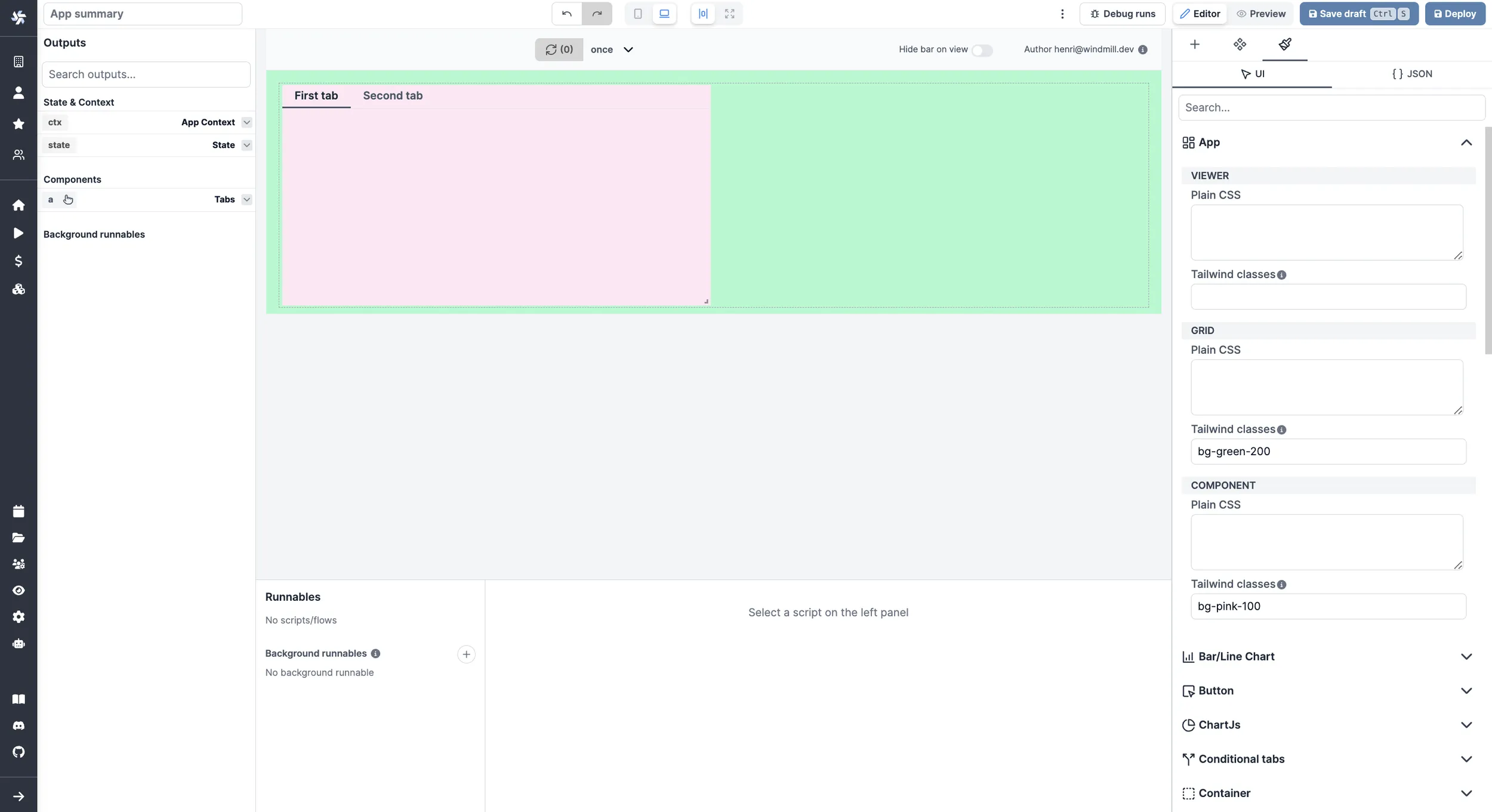

At the app level, you can give a harmonized style to your app with CSS. On the CSS tab, give details either in boxes or in JSON.

Customize CSS

Time to test

While building you app, you can try each component clicking on refresh button.

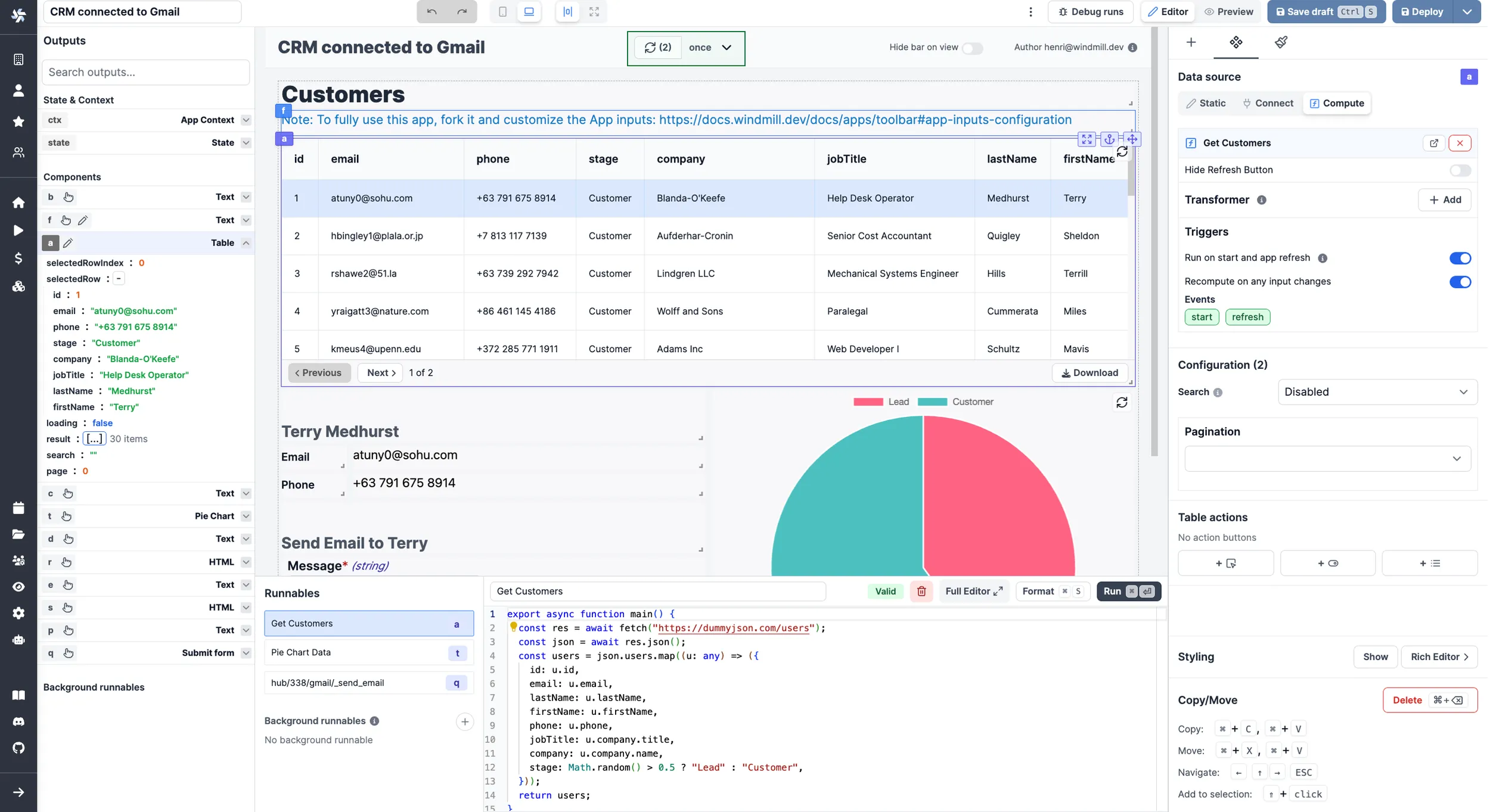

You can do a refresh all for the whole app with the refesh button on top of the canvas, or even schedule automatic refesh.

Refresh app

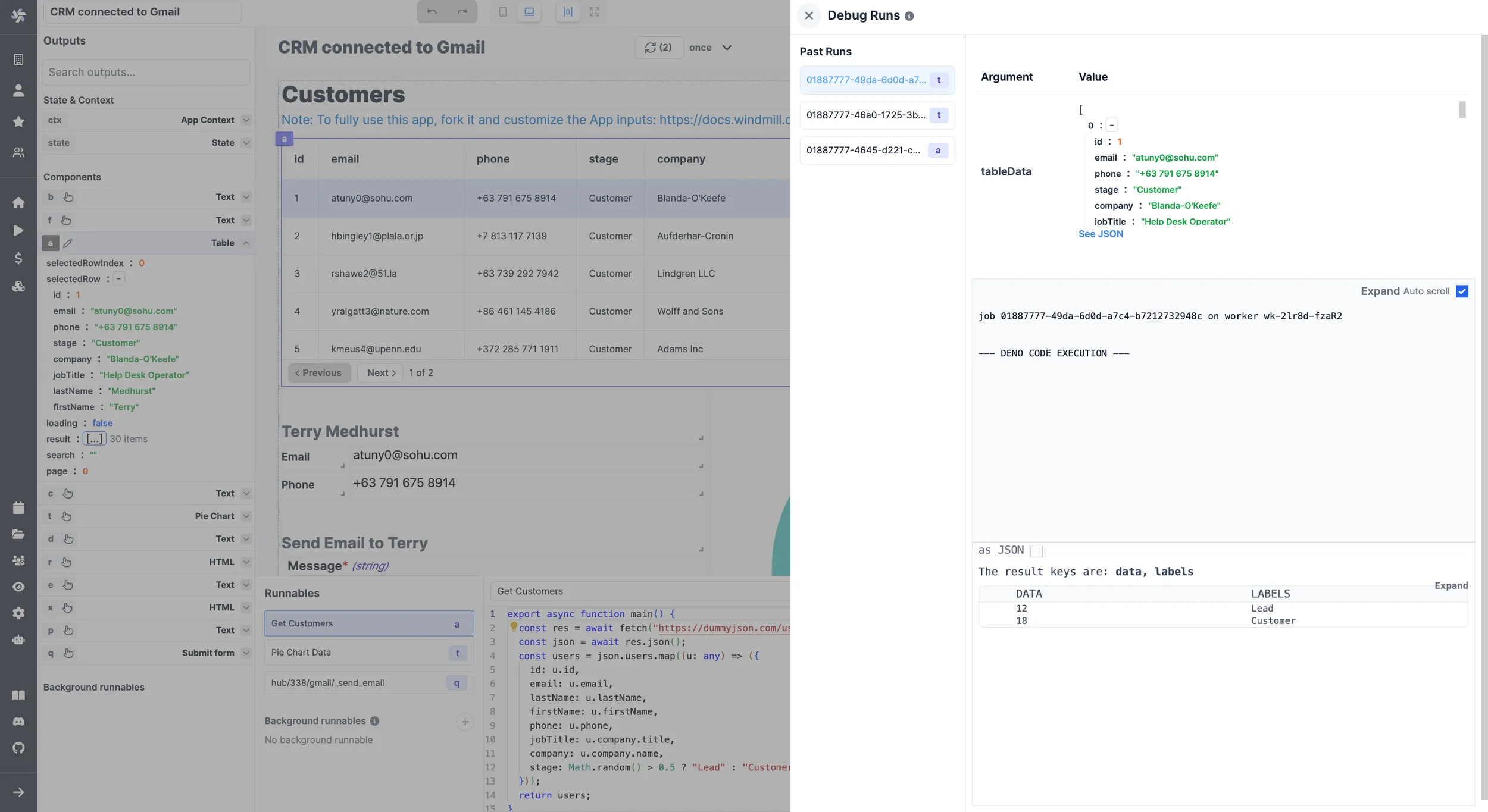

For possible bugs, there is a Debug Runs tab to review past runs with details per component.

Debug runs

Then what?

When you're done with the editing of your app, Save the current version to the relevant users/folders with a proper and explicit name.

Once it's saved, it's ready to use! You can also Publish it, or even Publish to Hub and export it in JSON or Hub compatible JSON from the tab.
