Pipelines quickstart

Alpha

Pipelines are in alpha. The entry point is deliberately tucked away while we develop the feature, and the annotation syntax and behavior described in this guide are still evolving and may change in future releases. We would love your feedback - share it on Discord or GitHub.

This guide builds your first pipeline: a set of scripts in a folder wired together automatically by the data they read and write, no manual orchestration. It takes about five minutes.

1. Create a pipeline​

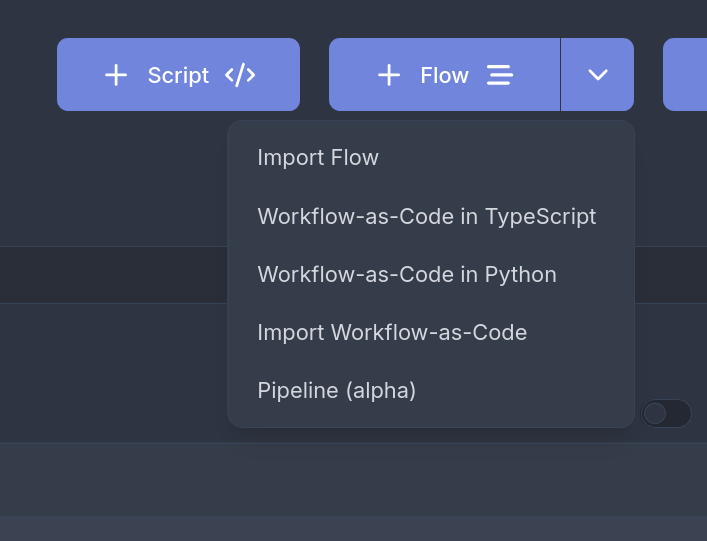

On the home page, open the dropdown next to the + Flow button and select Pipeline (alpha).

Create a pipeline from the + Flow dropdown

Pipelines live in a folder (for example f/demo); every script you add to it and mark with // pipeline becomes part of the same pipeline graph.

2. Add a producer script​

Create a script f/demo/ingest. The // pipeline line places it in the folder's pipeline; the S3 write is detected automatically as the script's output.

// pipeline
import * as wmill from 'windmill-client';

export async function main() {
	await wmill.writeS3File({ s3: 'demo/raw.json' }, JSON.stringify([{ n: 1 }, { n: 2 }]));
}

3. Add a consumer script​

Create f/demo/transform. The // on annotation declares the asset it reads, which becomes an incoming edge: this script runs automatically whenever demo/raw.json is written.

// pipeline
// on s3://demo/raw.json
import * as wmill from 'windmill-client';

export async function main() {
	const rows = JSON.parse(await wmill.loadS3File({ s3: 'demo/raw.json' }));
	await wmill.writeS3File({ s3: 'demo/sum.json' }, JSON.stringify({ count: rows.length }));
}

4. Open the pipeline graph​

Open the folder and select the pipeline view. You will see the lineage:

ingest → s3://demo/raw.json → transform → s3://demo/sum.json

5. Run it​

On the ingest node, choose "Run + downstream". ingest runs, writes raw.json, and the asset cascade automatically fires transform, which writes sum.json. Each node shows live status as the run progresses.

That is the whole model: mark scripts with // pipeline, declare inputs with // on, and Windmill infers and runs the graph from asset lineage.

Next steps​

Add schedules, partitions, AND/OR joins and debounce. Every annotation and option is documented, with examples, on the concept page.

Pipelines
Full reference: every annotation and option with examples (schedules, partitions, joins, debounce).
Assets
How Windmill detects and tracks the S3 objects, resources and tables your scripts read and write.
